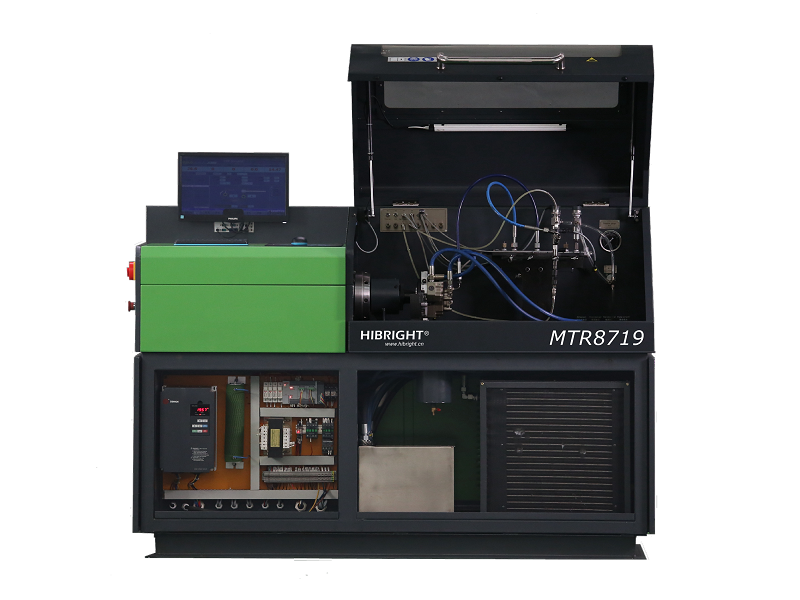

Common Rail Test Bench MTR8719

Technical specification

1. Power: 11Kw,15Kw,18.5Kw

2. Rated Voltage:220V,380V,415V

3. Rated Voltage:50/60HZ

4. Cylinders: 6 / 12

5. Speed Range: 0—4000rpm.

6. Temperature Control Range: 42℃,

   Accuracy: ±2℃

7. Fuel supply pressure control range: 0—0.4Mpa

8. Feed Volume Measurement Range:0.03—45L/H

9. Return Volume Measurement Range: 6—400L/H

10. Max rail pressure:  2000bar

11. Cooling capacity: 5000Kal(water cooling)

Main function

For testing and calibrating:

1. High pressure common rail pumps:

    BOSCH CP1, CP2, CP3

    DELPHI

    DENSO HP0, HP2, HP3

    SIEMENS Piezo

    Caterpillar

2. Common rail injectors:

    BOSCH

    DENSO

    DELPHI

    SIEMENS Piezo

    Caterpillar
