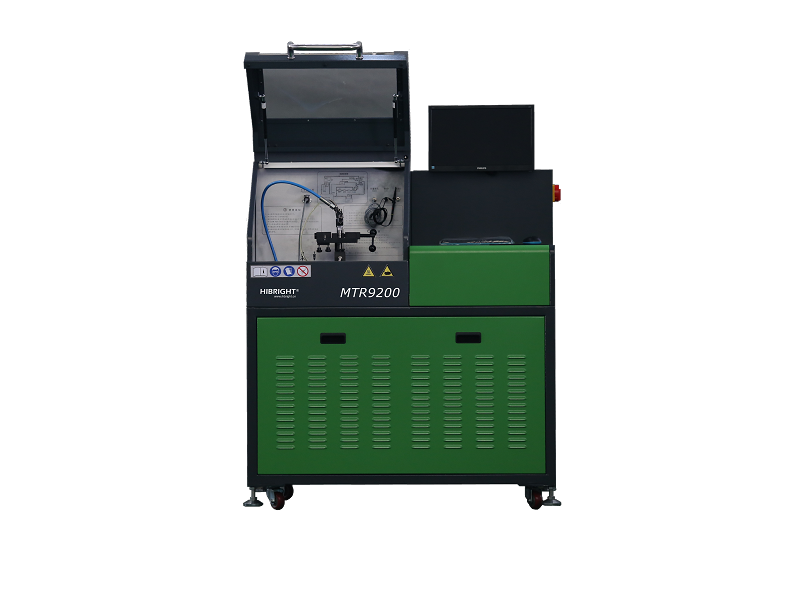

Common Rail Injector Tester MTR9200

Technical specification

1.     Output power: 4KW

2.     Motor speed range: 0—2000 rpm

3.     Temperature regulating range:40±2℃

4.     Driving currency of the injector(Max): 28A

5.     Injection time: 100—3000µs

6.     Pressure regulating range: 0—2000Bar

7.     Pressure control accuracy: ±0.5Mpa

8.     Flow testing range: 0—600ml/1000times

9.     Flow testing accuracy: 0.1ml

10.   Cooling method: water cooling or fan cooling

Main function

1.     Applied for testing common rail injectors of

        BOSCH, DENSO, SIEMENS Piezo, DELPHI, Caterpillar etc.

2.     Testing leakage and the flow volumes under different working status,

        such as the fuel flow volume under backflow, pre-injection, idling,

        full-loaded and emission.

3.     Checking the common rail injectors and judge the status is OK or FAIL.

4.     Editing injection curve

5.     Editing the testing steps and request

6.     Test report can be recorded and printed

7.     Setting and saving test data of new injectors in the software

8.     Have the high precision flow meters

9.     Supply hundreds of standard testing data with the sofeware

10.   Have various accessories for different common rail injectors
